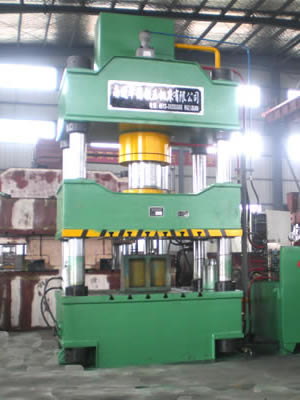

YHD32-315 four-column hydraulic machine |
★This series is a universal type; it is applicable for the pressing of plastic materials. Such as the powder products molding, cold (hot) extrusion sheet metal forming, stretching, stamping, bending, reversing and calibration process.
★The machine has the independent electric power system, is controlled through the centralized control buttons, which can realize three working mode of adjustment, manual and semi-automatic adjustment.
★According to the processing needs ,the working pressure of the machine , the pressing speed and the stroke is adjustable, at the same time ,it has three ways of processing , the ejection process, the non-ejection process, the stretching process , and in every different process ,there are two movement types to choose ,namely fixed pressure mode and fixed stroke mode, adopting the fixed pressure mode, it has the pressure protection, time delay ,and automatic return.
★Besides the mentioned functions, the ejection cylinder has the characteristics of pull-out, time delay and automatic return. Model parameters: Nominal pressure 3150KN Ejecting pressure 630KN Liquid’s maximum working pressure 25Mpa Slider stroke 800mm Ejecting stroke 300 Opening height 1250mm Slide stroke idle stroke down 100mm/s working 6~8mm/s back stoke 60mm/s Dimension of work table Left and right 1260mm Front and back 1200mm External dimension Left and right 3235mm Front and back 2060mm, Height above ground 4295mm Total power of motor 15KW |
